Your API Requests Should Be Validated

One of the most overlooked aspects while designing APIs is request validation.

An API gateway like Apache APISIX, predominantly used for fine-grained traffic control, can also validate your API requests. This new layer of validation within the API gateway, along with client-side and application-side validations, can be a useful design practice for many reasons, like:

Preventing invalid requests from being sent to backend services, reducing unnecessary load and thereby optimizing performance and reducing cost.
Allowing application developers to focus solely on application/business-specific validations in their services.
Adding another layer of security in front of your backend services, fending off malicious requests from ever reaching your services.

In this article, you will learn how you can configure APISIX to validate requests with JSON schemas before forwarding them to your upstream services.

Creating the Schema

For this example, our request will contain a purchase request sent from a client application to the payment service through the APISIX API gateway. A valid request body will look like this:

{
  "uid": 2374,
  "item": "pin",
  "quantity": 5,
  "price": 5.0
}

Each key in this request represents the following:

uid: Unique ID of the user. It will be empty for a guest user.
item: Item being purchased. It can be one of “sticker,” “t-shirt,” or “pin.”
quantity: Quantity of the item being purchased.
price: Price of the item being purchased.

There are a lot of tools available, like the one from JSON formatter that converts JSON to JSON schema. But we will write our own schema to be more accurate:

{
  "type": "object",
  "required": ["quantity", "price", "item"],
  "properties": {
    "uid": {
      "type": "integer"
    },
    "item": {
      "type": "string",
      "enum": ["sticker", "t-shirt", "pin"]
    },
    "quantity": {
      "type": "integer",
      "minimum": 1,
      "maximum": 50
    },
    "price": {
      "type": "number",
      "minimum": 1.0,
      "maximum": 50.0
    }
  }
}

You can learn more about writing JSON schemas from the official website.

Setting Up APISIX

Since this article focuses on request validation at the API gateway level, we will deploy a simple setup consisting of Apache APISIX and the sample HTTPBin service:

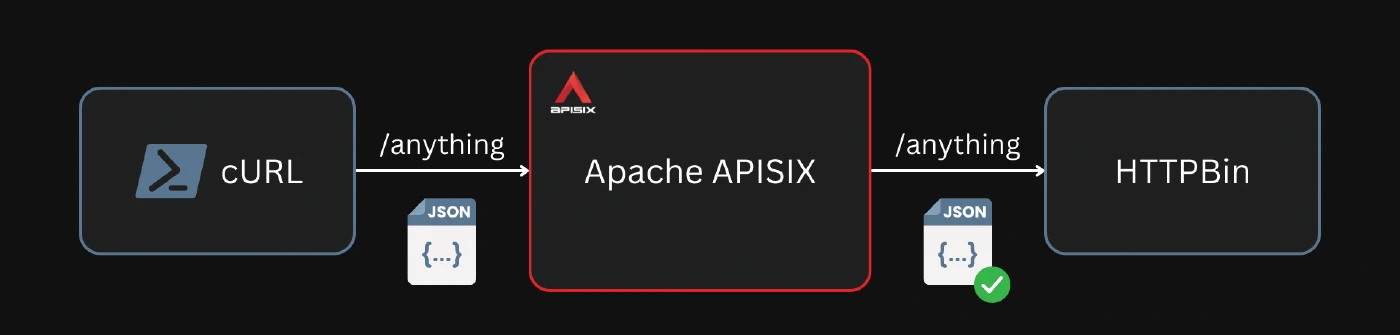

Simple deployment
The Docker Compose file below deploys everything

APISIX will forward the request to HTTPBin only if the request is validated. HTTPBin then sends a response containing all the data from the request, which we can validate.

The Docker Compose file below sets everything up as described above:

version: "3"

services:
  apisix:
    image: apache/apisix:3.4.1-debian
    volumes:
      - ./apisix/config.yml:/usr/local/apisix/conf/config.yaml:ro
      - ./apisix/apisix.yml:/usr/local/apisix/conf/apisix.yaml:ro
    ports:
      - "9080:9080"
      - "9180:9180"
  httpbin:
    image: kennethreitz/httpbin
    ports:
      - "80:80"

APISIX performs request validation through, you guessed it, the request-validation plugin. To use the plugin, you have to enable it in your config.yaml file. For this example, I have deployed APISIX in standalone mode. So my entire config.yaml file looks like this:

deployment:
  role: data_plane
  role_data_plane:
    config_provider: yaml
plugins:
  - request-validation
#END

Configuring Request Validation

We can now create a route in APISIX with the request-validation plugin. We will configure the plugin using the schema we created before. Since I’m configuring APISIX through a static configuration file in standalone mode, my configuration will look like this:

routes:
  - uri: /anything/*
    upstream:
      type: roundrobin
      nodes:
        "httpbin:80": 1
    plugins:
      request-validation:
        body_schema:
          type: object
          required:
            - quantity
            - price
            - item
          properties:
            uid:
              type: integer
            item:
              type: string
              enum:
                - sticker
                - t-shirt
                - pin
            quantity:
              type: integer
            price:
              type: number
#END

If you are not using APISIX in standalone mode, you can use the Admin API for this exact configuration:

curl "http://127.0.0.1:9180/apisix/admin/routes" -X PUT -d '
{
  "id": "valid-route",
  "uri": "/anything/*",
  "plugins": {
    "request-validation": {
      "body_schema": {
        "type": "object",
        "required": ["quantity", "price", "item"],
        "properties": {
          "uid": {
            "type": "integer"
          },
          "item": {
            "type": "string",
            "enum": ["sticker", "t-shirt", "pin"]
          },
          "quantity": {
            "type": "integer",
          },
          "price": {
            "type": "number",
          }
        }
      }
    }
  },
  "upstream": {
    "type": "roundrobin",
    "nodes": {
      "httpbin:80": 1
    }
  }
}'

Testing the Configuration

Now we can send a request to the created route. We can first try a request with an invalid body:

curl localhost:9080/anything/anything -H "Content-Type: application/json" -d '
{ "uid": 2374, "item": "hoodie", "quantity": 5, "price": 10.99 }'

You should get back a 400 response as expected:

property "item" validation failed: matches none of the enum values

Now if you send a valid request, you will get back the response from HTTPBin:

curl localhost:9080/anything/anything -H "Content-Type: application/json" -d '
{ "uid": 4639, "item": "sticker", "quantity": 20, "price": 20.0 }'

{
  "args": {},
  "data": "{\"price\":20,\"quantity\":20,\"uid\":4639,\"item\":\"sticker\"}",
  "files": {},
  "form": {},
  "headers": {
    "Accept": "*/*",
    "Content-Length": "54",
    "Content-Type": "application/json",
    "Host": "localhost:9080",
    "User-Agent": "curl/7.88.1",
    "X-Forwarded-Host": "localhost"
  },
  "json": {
    "item": "sticker",
    "price": 20,
    "quantity": 20,
    "uid": 4639
  },
  "method": "POST",
  "origin": "172.22.0.1, 223.239.0.41",
  "url": "http://localhost/anything/anything"
}

Non-trivial Vulnerabilities

Different services might use different JSON parsing implementations. Sometimes, this could lead to different parsed JSON in different services. This can open up a lot of non-trivial interoperability vulnerabilities.

For example, a client can send a malicious request with duplicate keys, and two different services might end up using two different keys:

{
  "uid": 8495,
  "item": "sticker",
  "quantity": 20,
  "price": 20.0,
  "price": 0.0
}

Now if this happens in a shopping cart and a payment service, i.e., the shopping cart has the price of 20.0, and the payments service has the price of 0.0, a malicious user could effectively make purchases for free!

An obvious solution here would be to configure better validation. For example, you can update the configuration to check for minimum and maximum values to ensure such malicious requests are rejected:

routes:
  - uri: /anything/*
    upstream:
      type: roundrobin
      nodes:
        "httpbin:80": 1
    plugins:
      request-validation:
        body_schema:
          type: object
          required:
            - quantity
            - price
            - item
          properties:
            uid:
              type: integer
            item:
              type: string
              enum:
                - sticker
                - t-shirt
                - pin
            quantity:
              type: integer
              minimum: 1
              maximum: 50
            price:
              type: number
              minimum: 1.0
              maximum: 50.0
#END

But APISIX handles this vulnerability in a more robust way by only forwarding the validated request body. This means that APISIX parses the request body, validates it, encodes the validated body, and forwards it to the upstream. Now every service after APISIX uses the same validated request body from APISIX:

curl localhost:9080/anything/anything -H "Content-Type: application/json" -d '
{
  "uid": 8495,
  "item": "sticker",
  "quantity": 20,
  "price": 20.0,
  "price": 1.0
}'

{
  "args": {},
  "data": "{\"quantity\":20,\"uid\":4639,\"price\":1,\"item\":\"sticker\"}",
  "files": {},
  "form": {},
  "headers": {
    "Accept": "*/*",
    "Content-Length": "53",
    "Content-Type": "application/json",
    "Host": "localhost:9080",
    "User-Agent": "curl/7.88.1",
    "X-Forwarded-Host": "localhost"
  },
  "json": {
    "item": "sticker",
    "price": 1,
    "quantity": 20,
    "uid": 4639
  },
  "method": "POST",
  "origin": "172.22.0.1, 223.239.0.41",
  "url": "http://localhost/anything/anything"
}

This excellent blog post sums up some more JSON interoperability vulnerabilities.

Complex Validation

What we discussed so far only included some basic validation. But APISIX has much more capabilities.

You can also configure a schema for validating headers, set a custom response code/message, and validate strings using regular expressions:

routes:
  - uri: /anything/*
    upstream:
      type: roundrobin
      nodes:
        "httpbin:80": 1
    plugins:
      request-validation:
        rejected_code: 418
        rejected_message: "I'm an intelligent Teapot!"
        header_schema:
            type: object
            required:
              - Content-Type
            properties:
              Content-Type:
                type: string
                pattern: "^application\/json$"
        body_schema:
            type: object
            required:
              - quantity
              - price
              - item
            properties:
              uid:
                type: integer
              item:
                type: string
                enum:
                  - sticker
                  - t-shirt
                  - pin
              quantity:
                type: integer
                minimum: 1
                maximum: 50
              price:
                type: number
                minimum: 1.0
                maximum: 50.0
#END

You can also set the specific version of the JSON schema used from draft 4, draft 6, and draft 7 to ensure accurate parsing by adding this key:

"$schema": "http://json-schema.org/draft-04/schema#"

Why Where to Validate?

It is fair to assume that you now understand why request validation might be necessary. However, you could still argue that validation can be done on the client side or within your backend services.

A key point is that you might not always own your clients, or modifying client requests might be not relatively easy. Adding validation in a layer you have absolute control of is the better alternative.

So why can’t you validate requests in your services directly? Well, after a point, it becomes too complex for the application developer to configure both request validation (header/body validation) and application/business-specific validation. Without an API gateway layer, invalid requests still end up adding load to your backend services.

Ideally, you should validate requests in all three layers with only business-specific validation in your services. The APISIX Dashboard can export the configured routes to OpenAPI format, which can be used for client-side validation.

To learn more about APISIX’s other capabilities as an API gateway, see apisix.apache.org.
